Three lenses of focal lengths +10 cm,-10 cm and +30 cm are placed at a distance of 30 cm,35 cm and 45 cm respectively from an object. The distance between the object and the image formed is
PhysicsWave OpticsTS EAMCETTS EAMCET 2019 (03 May Shift 2)
Options:
  • A 100 cm
  • B 75 cm
  • C 30 cm
  • D 45 cm
Solution:
1668 Upvotes Verified Answer
The correct answer is: 75 cm

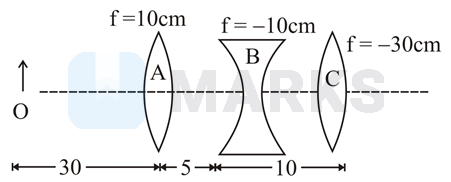

Refer above diagram,

For lens Au=-30 cmfB=+10 cm

The using lens formula, the image distance for lens A is

1vA-1uA=1fA

1vA-1-30=1+10

The image distance from lens Ais given by

vA=15 cm

For lens Bu=(vA-5)=(15-5)=10 cm and fB=-10 cm

Now image distance for lens B is

1vB-1+10=1-10vB=

Similarly, for lens C

u= and fC=30 cm

1vc-1=130vc=30 cm

Hence, total distance between object & image is

30+45=75 cm
